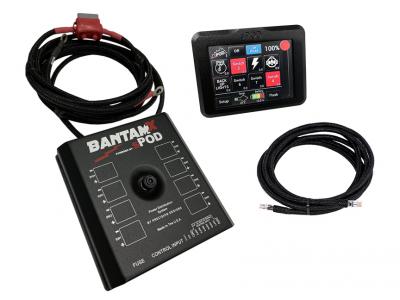

Collection: Smart LED Light Controllers & Switches - BantamX Touchscreen Systems

---

Smart touchscreen control for your complete lighting system. The BantamX 8-circuit controller delivers professional-grade power management with plug-and-play installation, eliminating complex wiring while controlling up to 32 circuits from a single touchscreen.

Managing multiple LED accessories shouldn't require hours of wiring or electrical expertise. The BantamX system by sPOD transforms your vehicle's lighting control with intelligent circuit management, built-in fault protection, and smartphone integration that puts complete command at your fingertips.

Whether you're building a Jeep Wrangler trail rig, upgrading your truck's work capabilities, or managing a complex off-road lighting setup, these automotive LED light controllers deliver the reliability professionals demand with the simplicity weekend warriors appreciate.

LED Light Controller Buying Guide

Understanding Controller Types

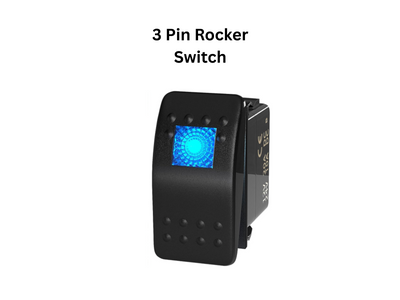

Traditional Switch Panels require individual wiring for each circuit, separate relay boxes, multiple fuse panels, and extensive knowledge of vehicle electrical systems. Installation can take 8-12 hours and often requires professional help.

Intelligent Controller Systems like the BantamX consolidate all circuit management into a single compact unit. One power connection, one Ethernet cable to the cab, and you're controlling up to 8 circuits (expandable to 32) with touchscreen precision. Installation time drops to 2-3 hours, even for first-time installers.

Why Smart Controllers Win: No cutting factory wiring, no tapping into existing circuits, no fishing wires through firewalls. The BantamX system includes integrated fault protection that automatically resets when shorts clear, preventing blown fuses and electrical fires that plague traditional switch panel installations.

Circuit Capacity Planning

8-Circuit Base System: Perfect for most enthusiasts running LED light bars, pod lights, and rock lights. Each circuit handles 30 amps at 12.5V, enough for the most demanding lighting applications.

Expandable to 32 Circuits: Daisy-chain up to four BantamX units controlled by a single touchscreen. Professional builds with extensive lighting, air compressors, winches, and multiple accessory groups need this scalability.

Real-World Example: A typical Jeep JL build with 50-inch roof bar, ditch lights, rear chase lights, rock lights, and interior accent lighting uses 6 of 8 circuits with room to grow.

Vehicle Compatibility

The BantamX system works with both 12V and 24V electrical systems, making it compatible with virtually any vehicle from compact trucks to heavy-duty commercial applications.

Jeep-Specific Integration: Direct-fit solutions for Jeep JL Wrangler and JK Wrangler (2007-2017) include vehicle-specific mounting brackets and simplified installation. The system integrates seamlessly with factory electrical systems without voiding warranties.

Universal Truck Applications: Works with Ford, Chevy, GMC, Ram, Toyota, and all major truck brands. The compact controller box mounts in engine bay locations that don't interfere with service access or modifications.

Jeep Wrangler Switch Panel Systems

Why Jeep Owners Choose BantamX Controllers

Traditional Jeep switch panel installations present unique challenges. The cramped dashboard space, complex factory wiring, and need to maintain water resistance make conventional switch installations difficult and time-consuming.

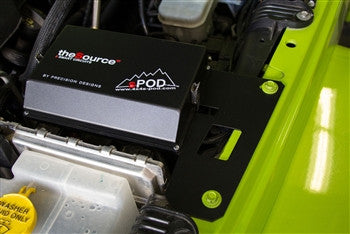

The 8 Circuit BantamX System for Jeeps (JK/JL/JT) solves these problems with Jeep-specific engineering. Vehicle-specific mounting brackets place the controller in optimal locations, while the single Ethernet cable eliminates the wire bundle nightmare that plagues traditional Jeep light controller installations.

Jeep Wrangler Model Coverage

JK Wrangler (2007-2018): Complete compatibility with both standard and unlimited models. The system accounts for JK-specific electrical architecture and integrates with factory switch locations.

JL/JT Wrangler (2018+): Available for both gasoline and diesel variants. Diesel JL/JT models require special mounting brackets (included in diesel-specific kits) to accommodate engine bay differences.

Important Compatibility Notes: The system does NOT fit Jeep Wrangler 4XE (hybrid) or 392 V8 models due to different electrical architectures. Contact our technical team at 1-800-348-1287 for these applications.

Touchscreen Integration

The precision-machined aluminum touchscreen mounts securely in your Jeep's cabin, providing fingertip control of all circuits. Real-time voltage monitoring shows your electrical system health, while individual circuit amperage display helps diagnose issues before they become problems.

Smartphone Control: Built-in Bluetooth enables programming and control through the free sPOD mobile app. Advanced features like dimming, strobing, circuit timers, and automated sequences transform basic on/off switches into intelligent lighting management.

Professional Light Controller Box Systems

Controller Box vs Switch Panel Comparison

Power Management Features

Current-Sensing MOSFETs: Unlike relay-based systems, the BantamX uses microprocessor-controlled MOSFETs that continuously monitor each circuit. When a short occurs, the system immediately disconnects power, then automatically retries connection when the fault clears.

Low Voltage Cutoff (LVCO): Protects your vehicle's battery from deep discharge. The system monitors battery voltage and automatically shuts down accessories before damage occurs. Optional override allows emergency use when needed.

Thermal Management: Built-in temperature monitoring prevents overheating. The powder-coated steel base and aluminum construction dissipate heat effectively, while the system reduces output if temperatures approach limits.

Universal Truck Light Controller

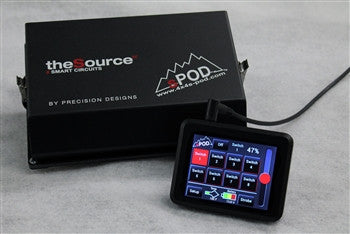

The 8 Circuit BantamX System for Universal Trucks works with any vehicle requiring professional lighting control. Whether you're building a work truck, recreational off-roader, or commercial fleet vehicle, this universal controller adapts to your specific needs.

Mounting Flexibility: The compact footprint fits in engine bays, under seats, behind cab walls, or in cargo areas. Universal mounting brackets and hardware included for secure installation in any location.

Voltage Compatibility: Operates on both 12VDC and 24VDC systems, making it suitable for light trucks, heavy-duty commercial vehicles, and specialized equipment requiring robust electrical management.

Complete System Recommendations

Package 1: Essential Jeep Lighting Control

Best For: Jeep JK/JL/JT owners adding basic off-road lighting

What's Included:

• 8 Circuit BantamX System for Jeeps
• 30-inch LED light bar for roof mounting
• 2-inch LED pod lights (pair) for ditch lights
• Wiring harness kit for complete installation

Why This Works: Covers the most popular Jeep lighting upgrade while leaving circuits available for future additions like rock lights, interior lighting, or chase lights.

Package 2: Universal Truck Complete Control System

Best For: Ford, Chevy, GMC, Ram, and Toyota truck owners building comprehensive lighting setups

What's Included:

• 8 Circuit BantamX System for Universal Trucks
• 40-inch curved LED light bar for bumper or roof
• LED pod lights (4-pack) for ditch and bed lighting
• Rock light kit for underbody illumination
• Complete wiring harnesses and mounting hardware

Why This Works: Provides front, rear, and underbody lighting with room for accessories like air compressors or auxiliary power outlets.

Package 3: Professional Multi-Circuit Command Center

Best For: Serious builders with extensive modifications and commercial applications

What's Included:

• 8 Circuit BantamX System (expandable to 32 circuits)
• 50-inch LED light bar for maximum coverage
• Multiple pod light sets for comprehensive illumination
• Rock lights and accent lighting
• Professional wiring kits
• RAM mount touchscreen option for optimal viewing angle

Why This Works: Manages complex builds with multiple lighting zones, work accessories, and future expansion capability. The touchscreen provides centralized control even when daisy-chaining multiple BantamX units.

Why Choose Black Oak LED for Light Controllers

Veteran-Operated Quality Standards

As a veteran-operated company, we understand mission-critical reliability. The BantamX system we've selected delivers the fault-tolerance and durability demanded by professional applications while remaining accessible to enthusiast installers.

Complete System Integration

Unlike standalone controllers, our systems integrate seamlessly with Black Oak LED lighting products. We test every combination to ensure compatibility, optimal performance, and simplified installation.

Pre-Configured for Success: All harnesses, connectors, and mounting hardware work together without modification. No guessing about wire gauges, connector types, or circuit ratings.

Professional Installation Support

Technical Assistance: Call 1-800-348-1287 for installation guidance, circuit planning, or troubleshooting. Our team has hands-on experience with thousands of installations across all vehicle types.

Dealer Network: Professional installation available through our nationwide dealer network. Find certified installers who understand both the controller and your specific vehicle requirements.

Technical Specifications & Features

Controller Core Specifications

Circuit Capacity: 8 circuits @ 30 amps per circuit at 12.5 VDC Maximum Total Load: 240 amps continuous with proper wire sizing Operating Voltage: 10-30 VDC (12V and 24V compatible) Startup Current: 65 amps for 5 seconds per circuit (handles LED inrush) Circuit Breaker: 50-amp auto-resetting main protection Expandability: Up to 4 units (32 circuits) controlled by single touchscreen

Protection Systems

Fault Protection: Self-healing system automatically disconnects shorts then reconnects when cleared Reverse Polarity: Prevents damage from incorrect battery connection Overcurrent: Current-sensing MOSFETs shut down overloaded circuits Thermal: Automatic derating if operating temperatures exceed limits Low Voltage Cutoff: Prevents battery damage with optional override Field Collapse: Protects against voltage spikes from inductive loads

Touchscreen Control Module

Display Type: Precision-machined aluminum housing with backlit screen Voltage Monitoring: Real-time battery and alternator voltage display Current Monitoring: Individual circuit amperage shown for each output Temperature Display: System board temperature monitoring Customization: 3-line text labels for each circuit Auto Dimming: Backlight automatically dims after 30 minutes Deep Sleep: Powers off after 6 hours of inactivity to prevent battery drain Emergency Shutdown: One-second hold shuts all circuits immediately

Smartphone App Features

Free Basic App Features:

• Individual circuit on/off control
• Dimming for compatible LED loads
• Strobe and flash patterns
• Momentary vs latching operation
• Switch linking (multiple circuits together)
• On-road vs off-road mode profiles

Pro-Series App Features (optional upgrade):

• Circuit timers (delayed activation/deactivation)
• Switch lockout for security
• Always-on circuits with fault protection
• Programmable current limiting (2-amp increments)
• Custom strobe patterns
• Ignition-controlled circuits
• Advanced automation sequences

Installation & Applications

Installation Advantages

No Factory Wiring Modification: The BantamX connects directly to your battery with supplied cables. Zero cutting, splicing, or tapping into factory harnesses preserves your vehicle's warranty and resale value.

Single Cable to Cab: Instead of running 8+ individual wires through the firewall, one Ethernet cable connects the controller to the touchscreen. This simplifies installation, improves appearance, and maintains water resistance.

Plug-and-Play Accessories: Connect LED light bars, pod lights, and accessories to the 16-position terminal block. No individual relays, fuse holders, or switch wiring required.

Professional Installation Available

While enthusiast installation is straightforward, professional installation ensures optimal results. Our dealer network includes experienced installers familiar with BantamX systems and Black Oak LED products.

Call 1-800-348-1287 for dealer locations, installation quotes, and technical consultation. Professional installation typically takes 2-3 hours and includes circuit planning, optimal component placement, and complete system testing.

Typical Installation Timeline

Hour 1: Controller box mounting, battery connection, and ground wire installation Hour 2: Touchscreen mounting, Ethernet cable routing, and initial power-up Hour 3: Accessory connections, smartphone app setup, and system configuration

Most builders complete installation in a single afternoon with basic tools and the included instructions.

Application-Specific Benefits

Off-Road Trail Riding

Circuit Organization: Assign lighting zones logically (front lights, rear lights, rock lights, interior). The touchscreen's clear labels eliminate guessing which switch controls what accessory.

Emergency Shutdown: One-touch-off function kills all circuits instantly if needed, while the one-second hold emergency shutdown handles critical situations.

Automatic Protection: If a branch damages a light bar during trail riding, the system disconnects that circuit automatically, protecting both the controller and your vehicle's electrical system.

Work Truck Applications

Scene Lighting Control: Manage work lights, bed lighting, and auxiliary power from the cab without leaving the driver's seat. Circuit timers automatically shut lights off after set periods, preventing battery drain.

Tool Power Management: Run power inverters, air compressors, or other 12V equipment through protected circuits with current limiting to prevent overload.

Fleet Consistency: Multiple vehicles equipped with identical systems mean drivers can operate any truck in the fleet without retraining.

Recreational Camping & Overlanding

Camp Setup Automation: Program lighting sequences for camp setup. Activate awning lights, underbody lighting, and interior accents simultaneously with one touch.

Battery Protection: LVCO prevents deep discharge during extended camping, while override allows essential circuit operation if needed.

Remote Control: Adjust lighting from outside the vehicle using the smartphone app (15-foot Bluetooth range).

Jeep Model Compatibility Chart

Selecting the Correct Jeep System

Standard JK (2007-2018): Order the JK-specific system with or without RAM mount based on desired touchscreen positioning.

Standard JL/JT Gasoline: Order the JL/JT system (non-diesel) with or without RAM mount.

Diesel JL/JT: MUST order diesel-specific version with special mounting bracket. System will not fit properly otherwise.

4XE and 392: These models require custom installation consultation. Call 1-800-348-1287 for alternative solutions.

Circuit Capacity Planning Guide

Planning Tips: Each circuit handles 30 amps, but don't exceed 80% continuous load (24 amps) for longevity. Combine low-draw accessories (rock lights + interior lighting) on single circuits to maximize available circuits for high-draw applications.

Frequently Asked Questions

How difficult is BantamX installation compared to traditional switch panels?

Traditional switch panel installation requires running individual wires from each switch through the firewall to relays, then to accessories, taking 8-12 hours for experienced installers. The BantamX system needs only one Ethernet cable to the cab and takes 2-3 hours for first-time installers with included instructions.

Can I control the system without the touchscreen?

Yes, the free smartphone app provides complete control via Bluetooth. Third-party switches, Arduino, Raspberry Pi, and other external controllers can also integrate with the system for custom applications.

What happens if one circuit shorts?

The self-healing fault protection immediately disconnects the shorted circuit, protecting both the controller and your vehicle's electrical system. The system automatically reconnects when the short clears, eliminating manual fuse replacement.

Will this work with my 24V truck?

Yes, the BantamX operates on both 12V and 24V systems (10-30 VDC range). This makes it suitable for heavy-duty trucks, commercial vehicles, and specialized equipment with 24-volt electrical systems.

Can I expand beyond 8 circuits?

Yes, daisy-chain up to four BantamX units (32 total circuits) controlled by a single touchscreen. This works for complex builds with extensive lighting, multiple accessory groups, or commercial applications requiring centralized control.

Do I need the RAM mount option?

RAM mount provides adjustable positioning for optimal touchscreen viewing angles. Without RAM mount, the touchscreen uses the included bracket with fixed positioning. Choose RAM mount if you want flexibility in placement or viewing angle adjustment.

How does smartphone control range work?

Bluetooth range varies from 5-15 feet depending on touchscreen location, vehicle construction, and phone type. The aluminum touchscreen housing limits range, so Bluetooth is best for programming rather than extended-range remote control.

What's included in Jeep-specific vs universal systems?

Jeep-specific systems include vehicle-specific mounting brackets designed for JK, JL, or JT installation locations. Universal systems include universal mounting hardware suitable for any vehicle but require custom placement planning.

The Black Oak LED Advantage

When professional reliability meets plug-and-play simplicity, you get the BantamX lighting controller system. Eliminate wiring nightmares, protect your electrical system, and control everything from a touchscreen or smartphone.

Ready to simplify your lighting control? Call 1-800-348-1287 to speak with our technical team about your specific vehicle and lighting needs, or explore our complete selection of LED light bars, pod lights, and wiring solutions below.

From weekend trail riders to commercial fleet operators, Black Oak LED delivers the complete lighting control solution.
