4 Inch LED Light Bars and Pods

The compact size for ditch lights, A-pillars, reverse lights and rock lights, plus marine spreaders for decks and cockpits. Double row bars, a 120W pod and spreaders in bracket or flush mount.

  • 12,480Raw lumens, 4" pod
  • IP69KSealed housing
  • 12V / 24VCompatible systems
  • LifetimeLimited Warranty
Shop 4 inch lights Mounts and marine
Black Oak LED 4 inch double row LED light bar with silver mounting brackets on wet gravel

Before you buy

Will it fit?Double row needs 6 in. bracket to bracket. The pod is 4-7/8 in. wide on its bracket.Fit guideWhich is brightest?The 4 inch pod: 120W and 12,480 raw lumens.CompareIs the wiring included?Double row bars and pods come ready to wire. Spreaders ship with a pigtail for your own switch.In the box
Filter Filter
Reset

Filter

Filter

9 products

Remove all

9 products

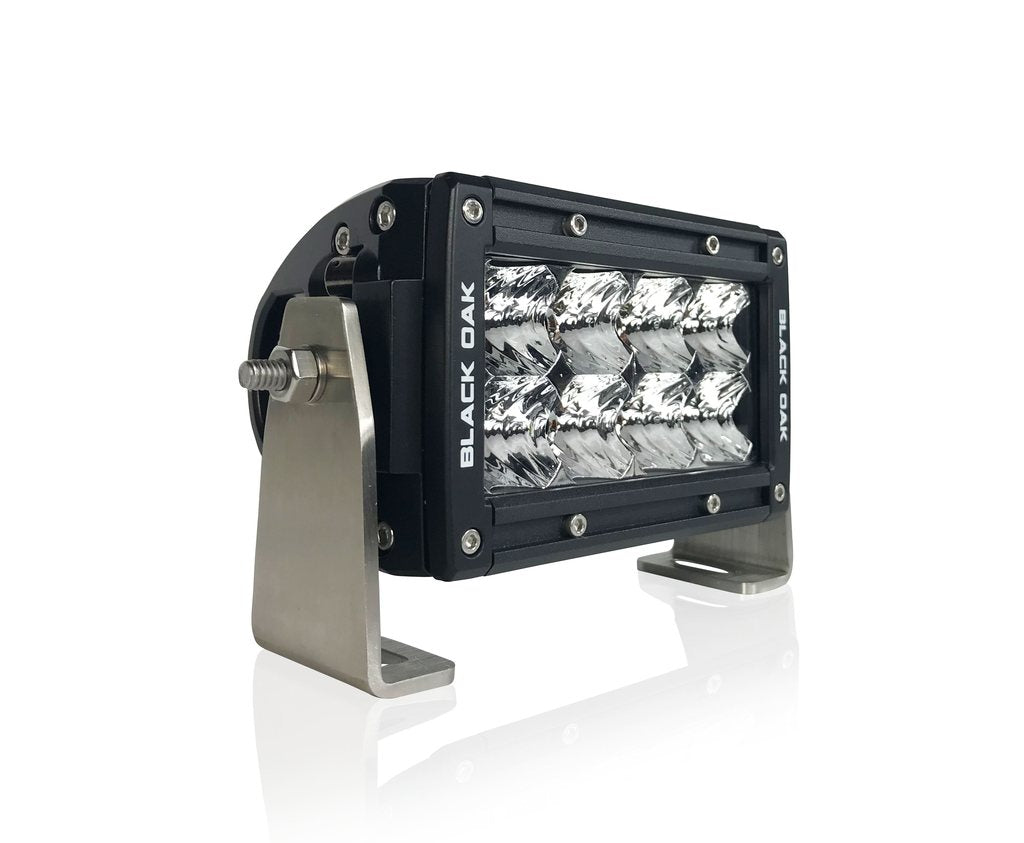

Professional 4 Inch LED Light Bars - Pro Series 3.0

4 inch LED light guide

Fit, mounting and wiring for 4 inch lights

Everything buyers ask us before ordering a 4 inch light, answered with the real measurements from our drawings and the numbers from our spec sheets. The short version: pick the double row for a compact bar, the pod for the most output in the smallest footprint, or a spreader for lighting up a deck.

Will it fit?

Measure the flat space where the light will sit. The 4 inch double row needs 6 in. bracket to bracket and 4-1/8 in. of height. The pod is 4-7/8 in. wide and 5-1/8 in. tall on its bracket. Bracket mount spreaders are 5 in. wide; flush mount spreaders need a 5-1/16 x 2-3/16 in. cutout under a 6-7/16 in. flange.

4 inch double row LED light bar dimension drawing
4" double row: 6 in. wide with brackets, 5-1/2 in. housing, 4-1/8 in. tall with bracket, 3-1/2 in. deep.
4 inch LED pod light dimension drawing
4" pod: 4-7/8 in. wide with bracket, 4-1/4 in. housing, 5-1/8 in. tall with bracket, 3-3/8 in. deep.
4 inch bracket mount LED spreader light dimension drawing
4" spreader, bracket mount: 5 in. wide, 2-1/8 in. tall plus a 3/8 in. bracket tab, 2-1/16 in. deep.
4 inch flush mount LED spreader light dimension drawing
4" spreader, flush mount: 6-7/16 x 3-3/16 in. flange, 5-5/8 in. between mounting holes, 2-1/16 in. deep, 5-1/16 x 2-3/16 in. cutout.

How it mounts

Double row bars and pods bolt down with the stainless brackets in the box, and the bracket pivots so you can aim the beam after it is mounted. Flush mount spreaders drop into a cutout and fasten through the flange. For tubes and rails, add a universal clamp bracket.

Ditch lights and A-pillarsA pair of 4 inch double rows or pods at the base of the windshield lights the edges of the trail.
Bumper and fog positionsThe double row fits compact bumper openings at 6 in. wide with brackets.
Reverse, rack and rock lightsMount on the rear bumper, a rack or under the body for backing up and work light.
Boat T-top, hardtop or transomSpreaders throw a 120° scene beam across the deck. Bracket mount on a T-top, or flush mount into a hardtop or transom.

What's in the box

Double row bars and pods come ready to wire. Spreaders ship with a pigtail, so you supply the switch and fused wire.

  • 4 inch double row with 16 in. lead and 2-pin Deutsch connector
  • 12 ft wiring harness with on/off switch, relay and inline fuse (double row)
  • Stainless mounting brackets and hardware
  • 4 inch pod: wire harness, stainless bracket and security hardware
  • Spreaders: Deutsch pigtail, stainless bracket and hardware, no harness

Wiring diagram

The double row harness is plug-and-play: connect the red lead to the battery positive, the black to the negative, run the switch into the cab and plug the bar into the Deutsch connector. The relay keeps the full load off your switch.

Download the quick start guide (PDF)

Light bar wiring diagram Battery positive runs through the inline 5A fuse to the relay. The in-cab on/off switch triggers the relay, and the relay powers the light bar through the 2-pin Deutsch connector. The relay and the light bar ground to the battery negative or a clean chassis ground. GROUND: battery negative or clean chassis ground BATTERY 12V or 24V +− 5A FUSE RELAY included ON/OFF SWITCH in cab, 3/4 in. hole trigger Deutsch 2-pin 4" LIGHT BAR Harness: 12 ft, fuse, relay and switch included Lead from bar: 16 in. to 2-pin Deutsch powergroundswitch trigger
Pods and spreadersThe 4 inch pod includes a harness and calls for a 15A fuse. Spreaders have a 16 in. pigtail with a 2-pin Deutsch connector and no harness; wire them through your own switch with a 5A fuse.
Factory upfitter switchesWiring into a Ford, Ram or GM upfitter switch? Skip our relay and connect directly; the upfitter circuit already has one.
Keep it watertightUse heat-shrink butt connectors or solder sleeves on any splice. The Deutsch connector can be cut off if you need a custom run.

Brightness & beam

Figures are from each product's spec table. The double row uses 5W Osram LEDs with a 15° spot or 45° flood; the pod uses 10W Osram LEDs in a combo beam; spreaders use Cree LEDs behind 120° scene optics for even deck light. 6,000K color temperature, rated for 50,000 hours.

4" pod, 120W
12,480 lm
4" double row, 40W
5,280 lm
4" spreader, 40W
3,120 lm
LED light bar beam pattern guide comparing spot, flood and combo beam shapes
Illustrated beam shapes, not measured light output. Tap to enlarge.

4 inch light specs

5W LED build on the double row, 10W LEDs on the pod. Every light: IP69K sealed, 6,000K, 50,000-hour rated life, Lifetime Limited Warranty. Pods and spreaders run on 10-30V DC; the double row on 12-30V DC.

BarWattageRaw lumensLEDsSize with bracketsWeight
4" double row40W5,28086 x 4-1/8 x 3-1/2 in.4 lb
4" pod120W12,480124-7/8 x 5-1/8 x 3-3/8 in.2.6 lb
4" spreader, bracket mount40W3,12045 x 2-1/8 x 2-1/16 in. plus 3/8 in. tab0.35 lb
4" spreader, flush mount40W3,12046-7/16 x 3-3/16 x 2-1/16 in. flange0.35 lb
4" gigging light40W3,1204See product page0.8 lb

Kits for your vehicle

There are no vehicle-specific kits in 4 inch. These collections cover brackets and marine setups.

BoatsMarine lights and spreadersAny vehicleUniversal brackets and clamps

4 inch LED light bar questions

What is the brightest 4 inch light bar Black Oak makes?

The 4 inch pod is the brightest, at 120W and 12,480 raw lumens.

Will a 4 inch light bar fit my vehicle?

Measure the flat space where the light will sit. The 4 inch double row needs 6 in. bracket to bracket and 4-1/8 in. of height. The pod is 4-7/8 in. wide and 5-1/8 in. tall on its bracket. Bracket mount spreaders are 5 in. wide; flush mount spreaders need a 5-1/16 x 2-3/16 in. cutout under a 6-7/16 in. flange.

Does a 4 inch light bar come with a wiring harness and switch?

The 4 inch double row ships with a 12 foot harness with the on/off switch, relay and a 5A inline fuse. The 4 inch pods include a harness and security hardware, and the spreaders ship with a Deutsch pigtail to wire into your own switch circuit.

What warranty comes with a 4 inch light bar?

Every 4 inch Black Oak LED light bar and light in this collection is covered by a Lifetime Limited Warranty. See each product page for the terms.

Other sizes: 6 inch light bars, or every size and type in LED light bars. Designed and engineered in Sarasota, Florida.
