NEW - 20 Inch Slim Dual Color LED Light Bar | White & Yellow (300W)
NEW - 20 Inch Slim Dual Color LED Light Bar | White & Yellow (300W)
Sale price Price: $371.25 USD & Free Shipping
You Save: $0.00 USD
Couldn't load pickup availability

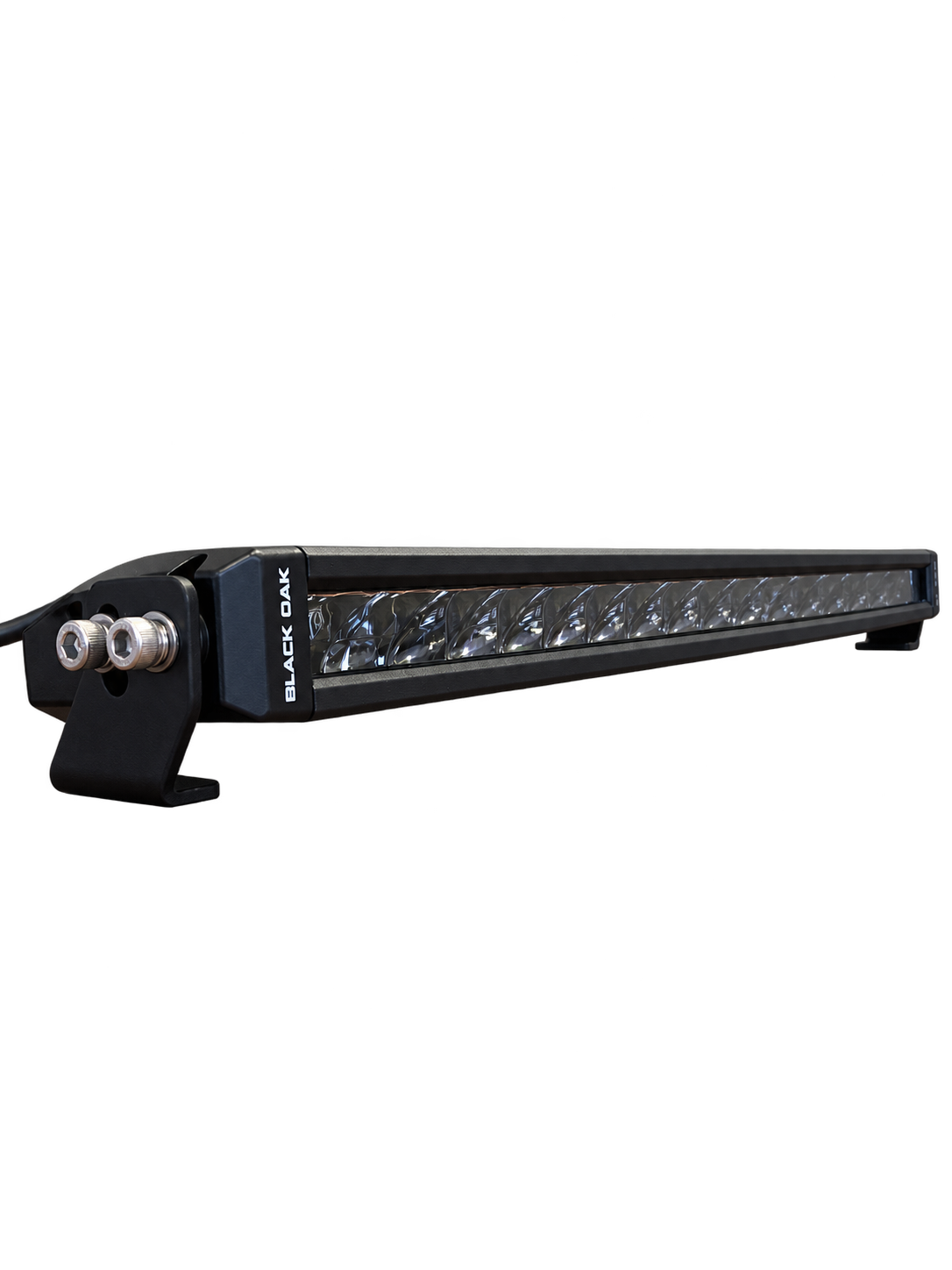

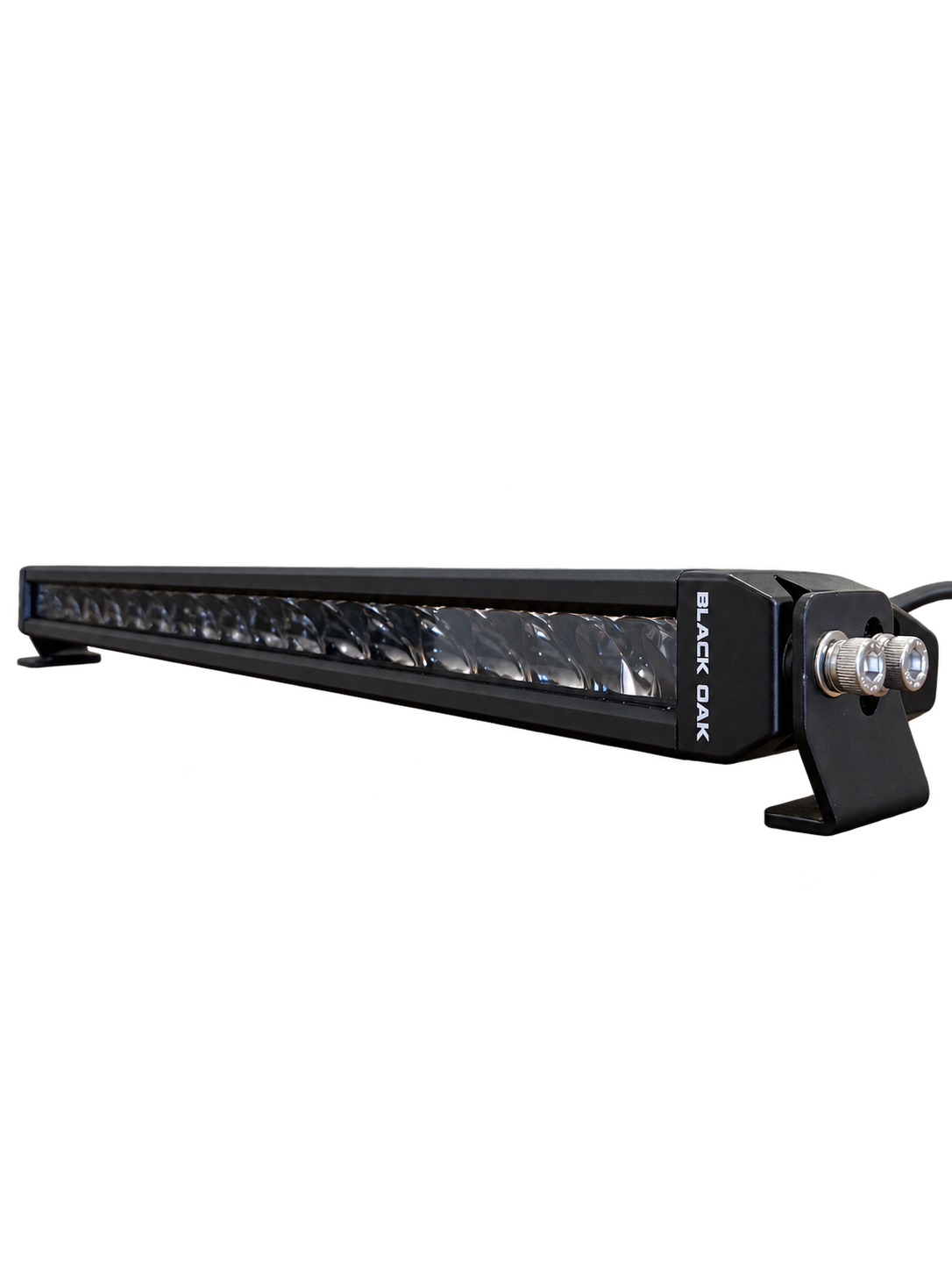

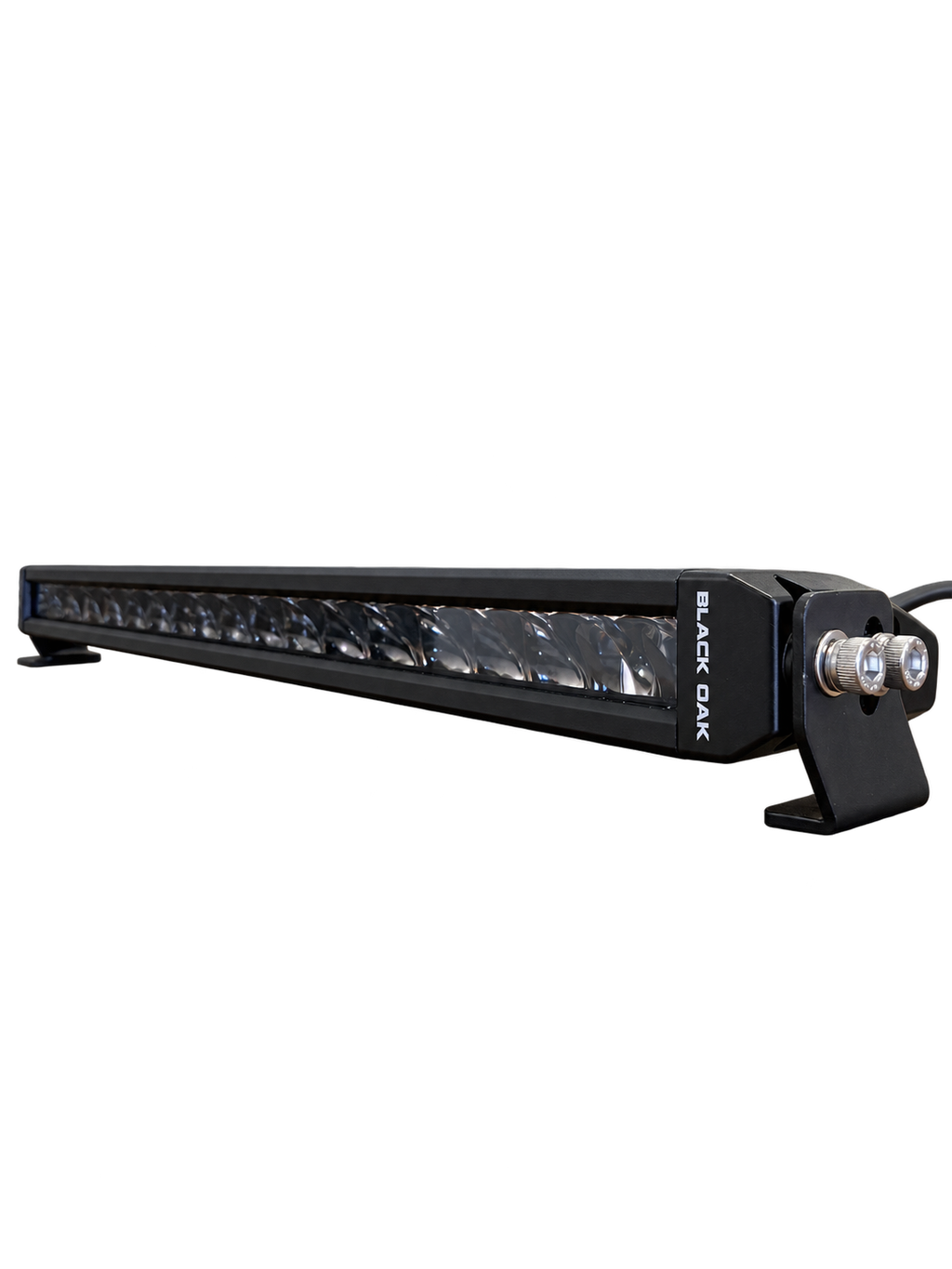

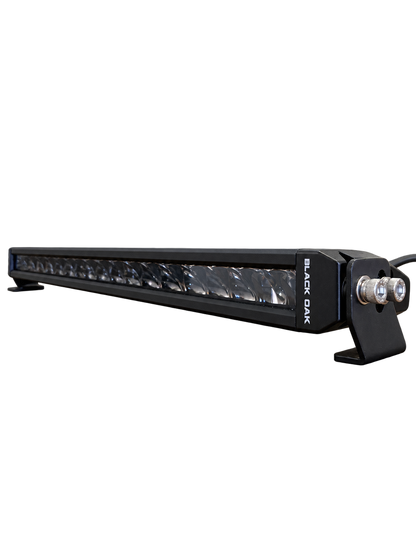

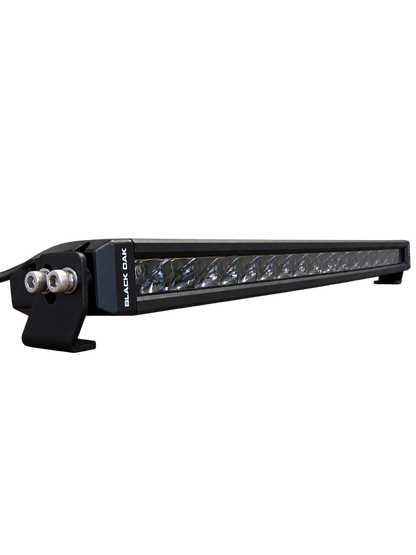

Black Oak LED 20" Single Row Dual Color Light Bar – Power Meets Precision
Light up the road, trail, or worksite with the Black Oak LED 20" Single Row Dual Color Light Bar, engineered for off-road trucks, ATVs, UTVs, and work vehicles. At 20 inches, it delivers up to 10,950 raw lumens in a sleek, low-profile housing that fits grilles, bumpers, and roof racks, giving you serious brightness without the bulk of a double-row bar.
Features

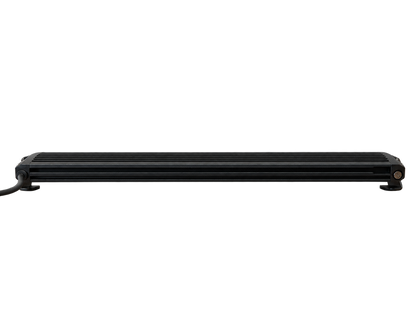

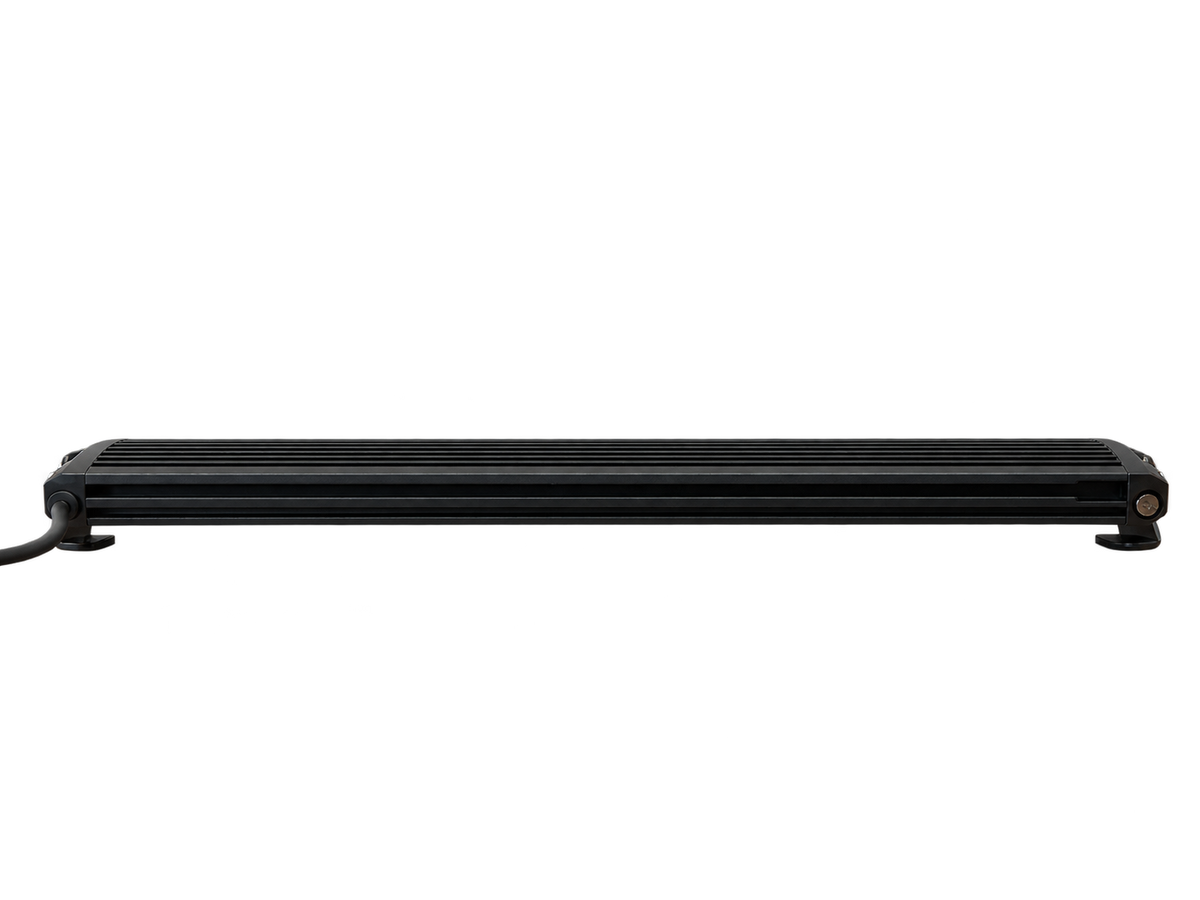

- Slim 20" Profile: 20" long but only 1-3/4" tall and 2-1/2" deep, built to mount virtually anywhere.
- Serious Output: Up to 10,950 raw lumens (7,500 effective) in white mode and 10,150 raw lumens (6,000 effective) in yellow.
- Dual Color Output: Seamlessly shift from pure 6000K white to crisp 3000K yellow with a simple flip of the switch.
- Engineered for Extreme Conditions: IP69K-rated to resist dust, water, pressure, and whatever else you throw at it.
- Combo Beam: Spot optics in the center for long-distance reach, with flood optics on the sides for a wide, even spread.
In the Box
- 20" Slim Dual Color Bar
-
Complete Wiring Harness
- Fuse
- Relay
- Switch
- Mounting Hardware
Slim Design, Maximum Output
The 20" single-row configuration packs high-output illumination into a compact, streamlined form, making it easy to mount on bumpers, grilles, roof racks, and roll cages without compromising aerodynamics or aesthetics.
Engineered for Extreme Conditions
With an IP69K waterproof rating, this light bar is built to withstand heavy rain, mud, dust, and high-pressure washing. The rugged aluminum housing and impact-resistant polycarbonate lens provide maximum durability for even the toughest environments.

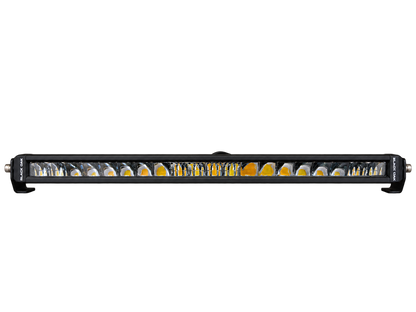

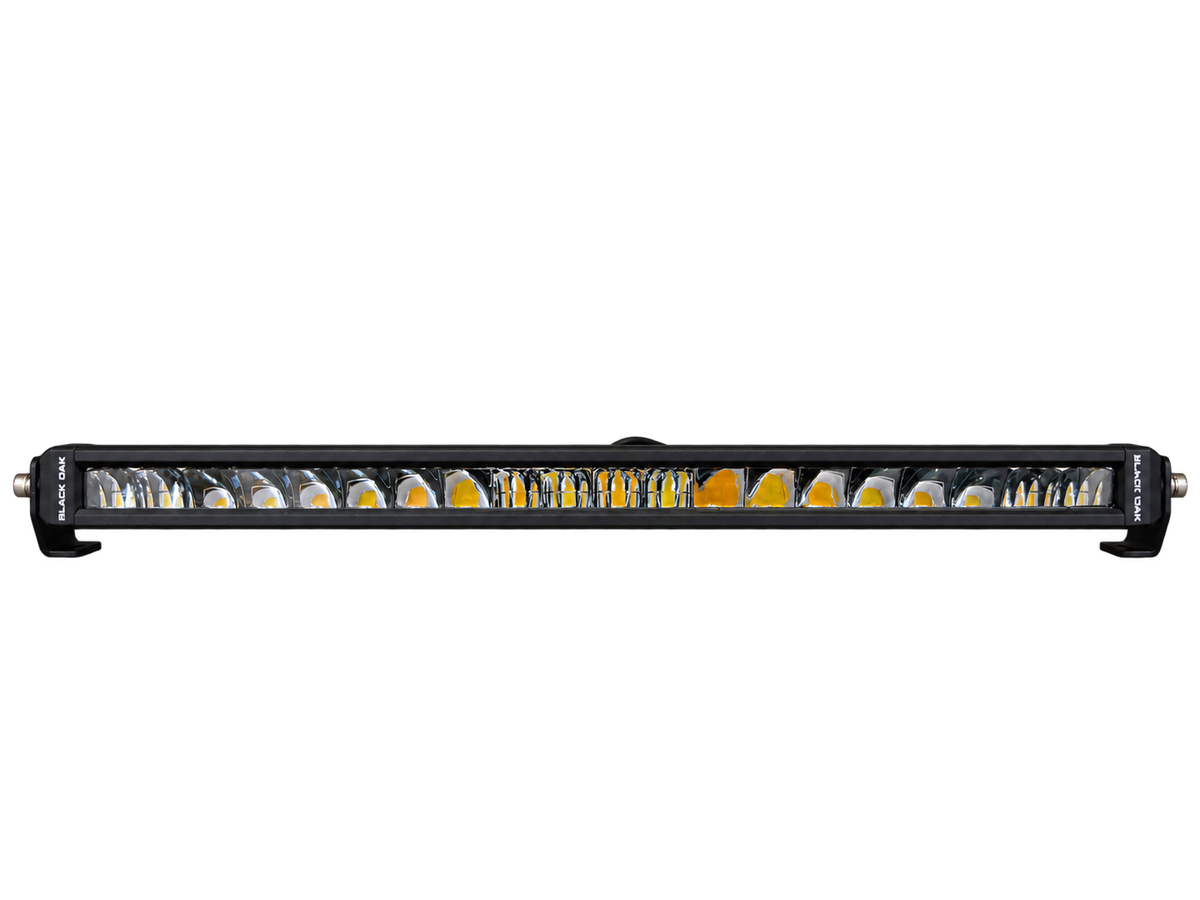

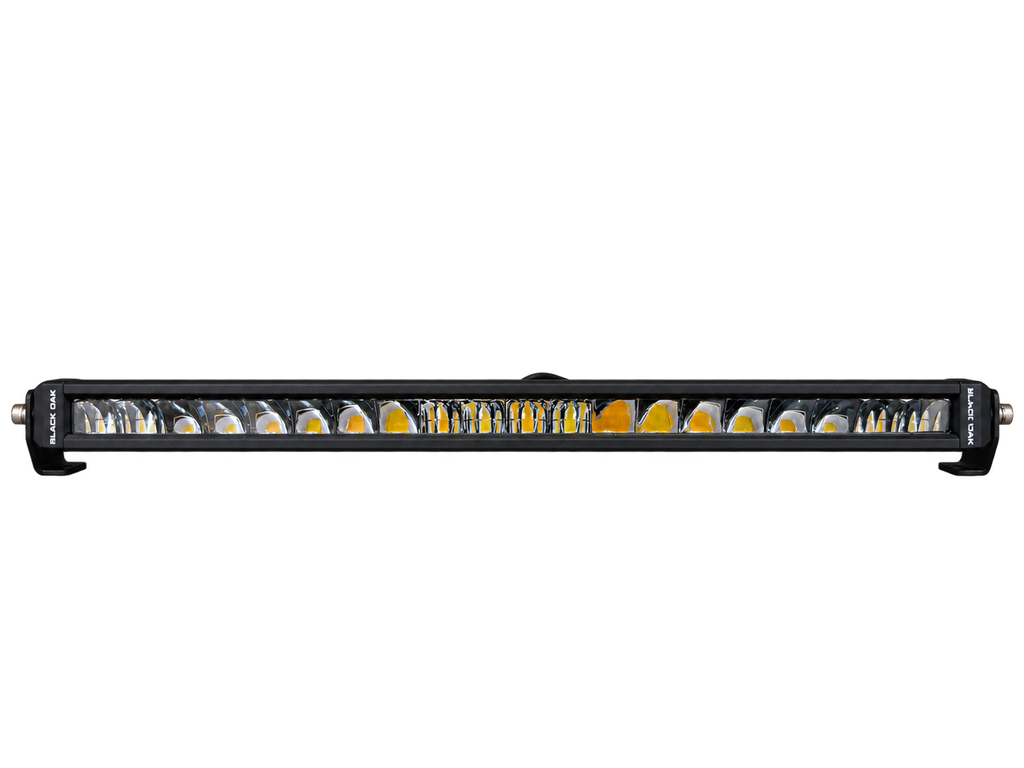

Dual-Mode White & Yellow Lighting
This light bar features a built-in dual-color LED system, allowing you to switch between bright white for clear visibility in normal conditions and intense yellow for enhanced performance in fog, dust, rain, and snow. The yellow mode cuts through harsh weather and glare, providing better contrast and visibility when conditions are at their worst.
Ceramic-Coated, Hydrex-Sealed Construction

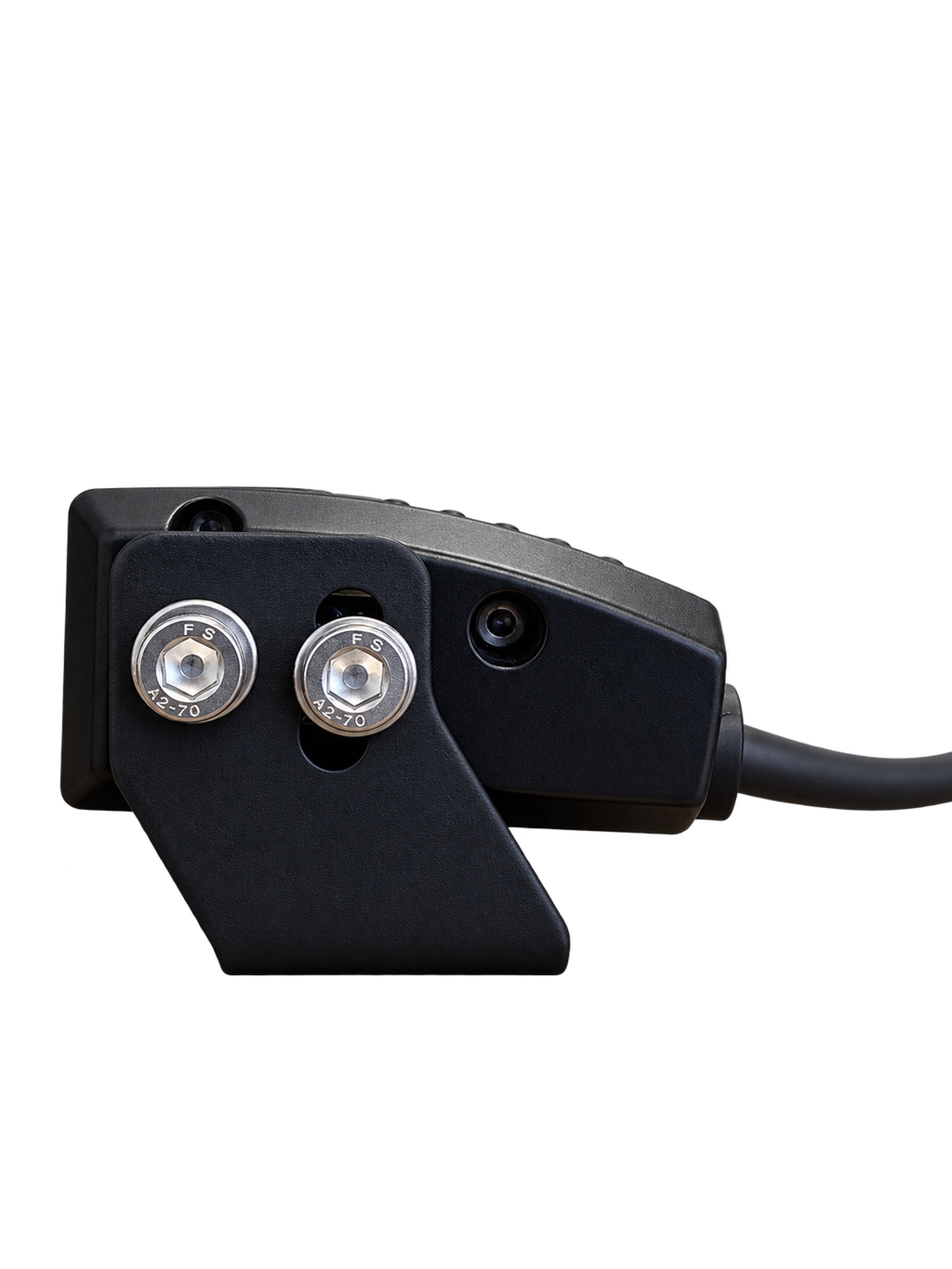

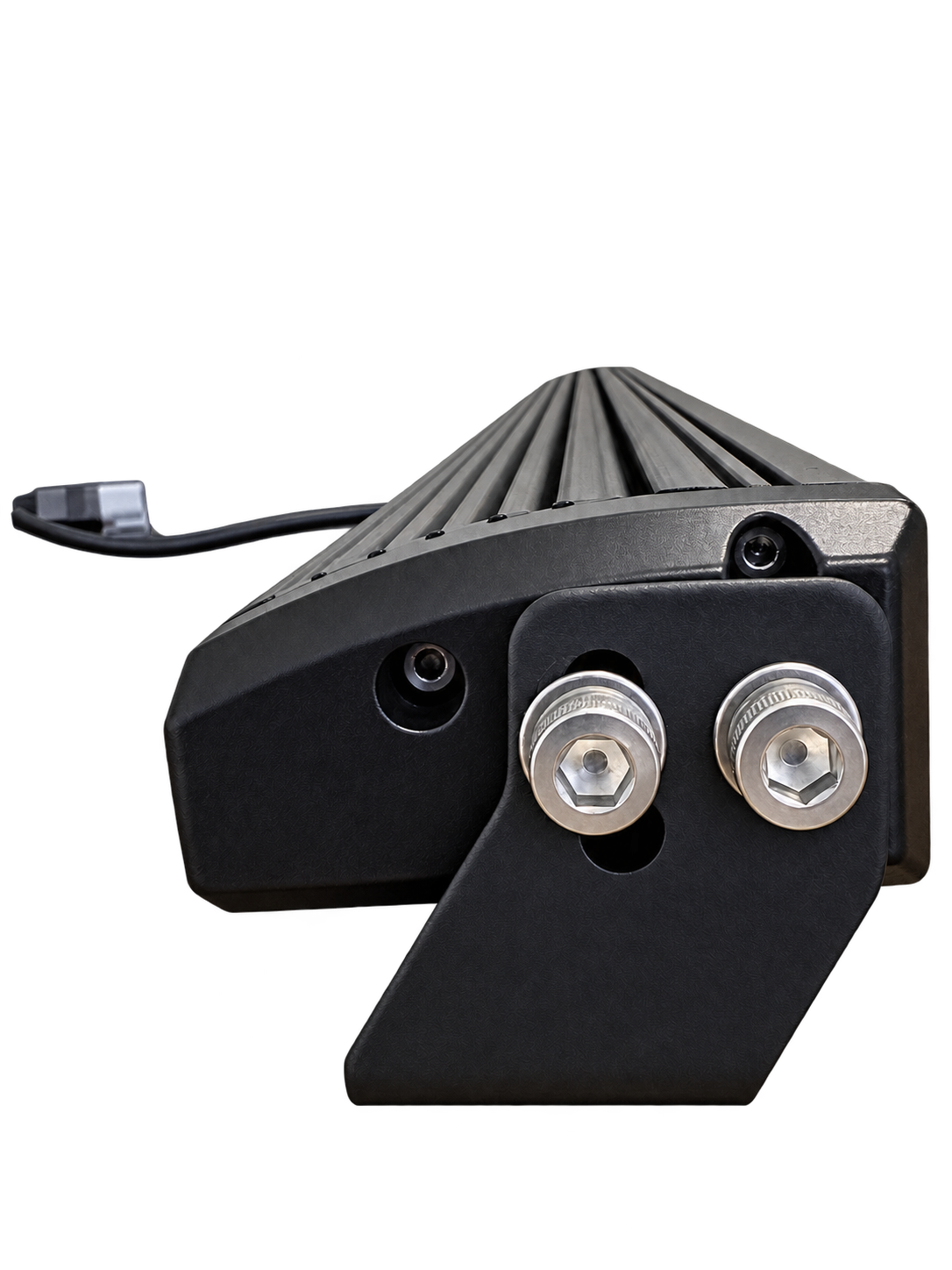

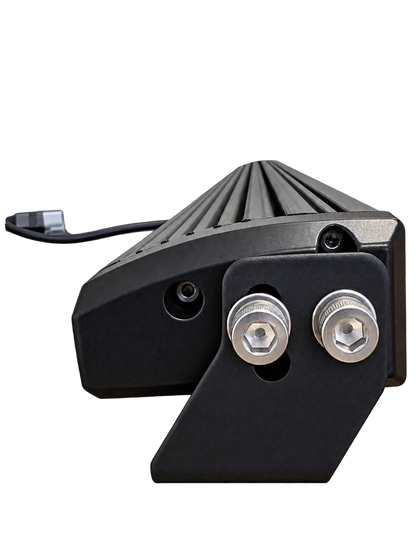

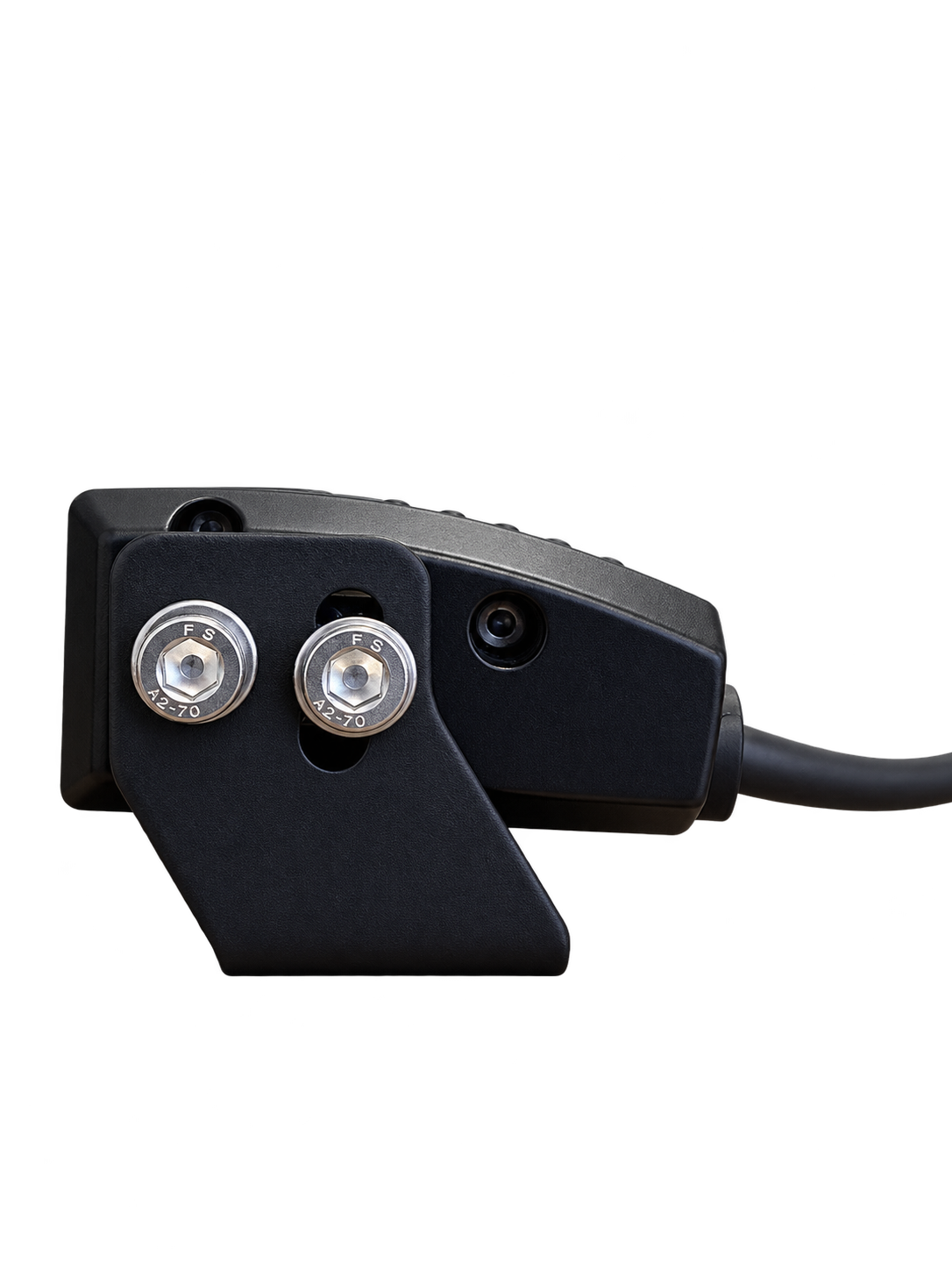

Finished with a corrosion-resistant ceramic coating and sealed with our Hydrex gasket system for true IP69K performance. 316 stainless bolt-in mounts provide unmatched strength and durability in saltwater or off-road environments.
Lifetime Warranty
Enjoy complete peace of mind knowing your light is backed by our industry-leading lifetime warranty. We stand behind every product we build — if it ever fails due to workmanship or materials, we’ll repair or replace it, guaranteed.
| Power & Performance | |
|---|---|
| Total Wattage | 300 |
| Total Amp Draw | 6.6A @ 13.2V (White or Yellow) |
| Operating Voltage | 9 - 30V DC |
| Raw Lumens | White - 10,950 Yellow - 10,150 |
| Effective Lumens | White - 7,500 Yellow - 6,000 |
| Color Temperature | White - 6,000K Yellow - 3,000K |
| LED Diode Quantity | 30 |
| LED Chip | Osram |
| Beam Pattern | Combo |
| Beam Angle | 45° Combo |
| Mode | On/Off White or Yellow |
| Dimmable | Yes! (Separate Dimming Module Required, Not Included) |
| Durability & Lifespan | |
| Life Expectancy | 50,000 Hours |
| Operating Temp | -40° to 145° F -40° to 62° C |
| Waterproof Rating | IP69K |
| Warranty | Limited Lifetime |
| Guarantee | 30 Day Money Back |
| Wiring & Installation | |
| Cord Lead From Light | 16” |
| Wire Harness Included? | Yes |
| Wire Harness Length | 12’ |
| Wire Gauge | 16 AWG |
| Fuse Size | 15A |
| Connector Type | 4 Pin Deutsch |
| Hole Size for Switch | ¾” |
| General | |
| Weight | — |
| SKU | 20C-AW |
Q: What does “IP69K rated” mean, and why is that important?
A: IP69K is one of the highest waterproof/dust-resistance ratings available. The first digit (“6”) indicates full protection against dust and fine particles; the “9K” means the light can withstand high-pressure, high-temperature water spray (e.g. pressure washing or heavy rain) without leaking or failing — making the light bar safe for marine, off-road, or harsh-weather use.
Q: Is all mounting hardware included, or do I need to buy extra parts?
A: The light bar ships with stainless steel mounting brackets and all necessary hardware — plus a complete wiring harness (with fuse, relay, and switch). So you don’t need to purchase additional mounts or wiring kits (unless you want custom mounting).
Q: What environments or applications is this bar suitable for?
A: With a fully sealed, IP69K-rated housing, rugged stainless-steel mounts, and premium LEDs, this bar is designed for demanding environments — like off-road vehicles, boats, work trucks, and industrial equipment. It handles dust, water spray, vibration, and harsh elements reliably.
Q: How bright is the 20" compared to the 10"?
A: The 20" puts out roughly double the light of the 10" — up to 10,950 raw lumens in white mode versus 5,475 — for longer reach and a wider spread.
