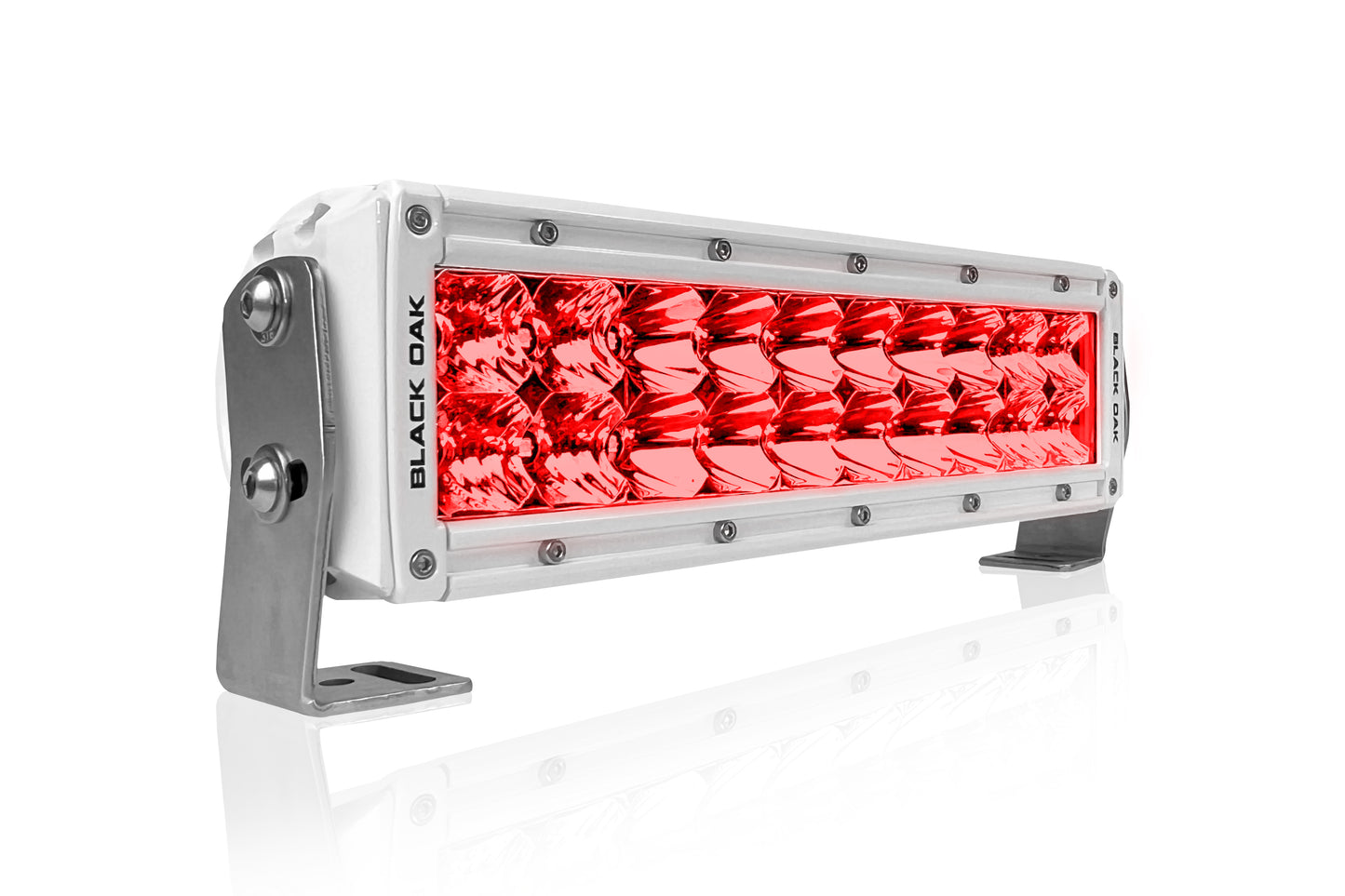

10 Inch Double Row Red LED Light Bar - Pro Series 3.0 - Combo (60W)
10 Inch Double Row Red LED Light Bar - Pro Series 3.0 - Combo (60W)
Price: $356.00 & Free Shipping
You Save: $89.00
Sale price Price: $445.00 USD & Free Shipping
You Save: $-445.00 USD
Couldn't load pickup availability
Built for early-morning runs, night navigation, and preserving natural night vision, the 10" Double Row Marine Red Light Bar delivers powerful red illumination specifically engineered for the marine environment. Designed to reduce glare, maintain visibility, and protect your eyes in low-light conditions, this bar gives anglers, captains, and night-riders the clarity they need without overpowering the darkness.
Just like the rest of our Pro Series lineup, this marine-grade bar is built to thrive in saltwater conditions. From its rugged IP69K waterproof housing to the oversized heat sink and premium LED technology, every detail is optimized for long-term reliability offshore. If you want a compact bar with clean red output, extreme durability, and a small footprint that fits almost anywhere—this 10" is the perfect match.
Features
-
Red LED Output designed to preserve night vision and reduce white-light glare
-
IP69K Waterproof Rating for maximum protection in harsh saltwater conditions
-
High-Efficiency Double Row Optics for strong, usable red illumination
-
Marine-Grade Aluminum Housing with corrosion-resistant coating
-
Oversized Heat Sink Design keeps LEDs running cooler and brighter for longer
-
Shatterproof Polycarbonate Lens built to withstand impact and constant vibration
-
EMC/EMI Protected to prevent interference with radios or fish finders
-
Low-Profile Mounting Options ideal for T-tops, towers, leaning posts, decks, and rail systems
-
Reverse/Overheat Protection Circuitry for long-term reliability
In the Box
-
10" Double Row Marine Red Light Bar
-
Marine-grade mounting brackets + stainless steel hardware
-
Wiring harness - includes inline fuse, relay, and switch
-
Installation guide
Red Light Designed for Night Vision
Red output preserves natural night vision, making it easier to navigate, read gauges, check gear, and operate your boat without the eye strain caused by bright white light.
Built for Harsh Saltwater Conditions
From the IP69K housing to the corrosion-resistant finish and sealed internal components, this bar is engineered specifically for long-term durability in marine environments.
Compact Size, Maximum Versatility
At just 10 inches, it’s small enough to mount almost anywhere—yet powerful enough to illuminate decks, bow areas, walkways, and cockpit spaces with smooth, even red light.
| Power & Performance | |
|---|---|
| Total Wattage | 60 |
| Total Amp Draw | 4 |
| Operating Voltage | 10-30V DC |
| Raw Lumens | 7,500 |
| LED Diode Quantity | 20 |
| LED Chip | Osram |
| Beam Pattern | Combo |
| Beam Angle |
Both - Combo 15° - Spot 45° - Flood |
| Mode | All On |
| Durability & Lifespan | |
| Life Expectancy | 50,000 Hours |
| Operating Temp | -40° to 145° F -40° to 62° C |
| Waterproof Rating | IP69K |
| Warranty | Limited Lifetime |
| Guarantee | 30 Day Money Back |
| Wiring & Installation | |
| Cord Length From Light | 16" |
| Wire Harness Included? | Yes |
| Wire Harness Length | 12' |
| Wire Gauge | 16 |
| Fuse Size | 10 Amp |
| Connector Type | 2 Pin Deutsch |
| Hole Size for Switch | 3/4" |
| Mounting Bolt Size | |
| General | |
| Weight | 3.8 Lbs |
| SKU | |
How do I know your lights are of the highest quality?
With IP68, IP69, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, Including water, temperature, pressure, and sheer brute force.
What exactly does your warranty cover?
We are human, and thus make mistakes. If you believe your light was one of these rare occurrences due to workmanship or material failure, send it back and we will verify. Once confirmed, Black Oak LED will repair, or otherwise replace, your light free of charge.
What is light beam spread pattern, and what is best for me?
Flood- Wide-spread light to illuminate the side and front of your rig. Perfect for those who want a wider cone of light than a spot.
Spot- Great for those who need those piercing beams of light that seem to travel forever.
Combo- Best of both worlds, the floods sit on the outside giving you the side blow-out of light while still shooting far with the Spots piercing far ahead.
