Fathom LED Underwater Light (FL12)
Fathom LED Underwater Light (FL12)
Sale price Price: $596.00 USD & Free Shipping
You Save: $0.00 USD
Select Popular Add Ons
Couldn't load pickup availability
Black Oak Marine · Fathom Series
Fathom LED Underwater Light
Model FL12 · Surface Mount
Twelve LEDs and 8,000 raw lumens behind a 65° collimator optic — the same 4.3-inch footprint as the FL6, with nearly double the light going into the water.
8,000Raw Lumens 55WTotal Draw 12LEDs IP69KSealed
2-Year Warranty · 30-Day Money Back · Free Shipping

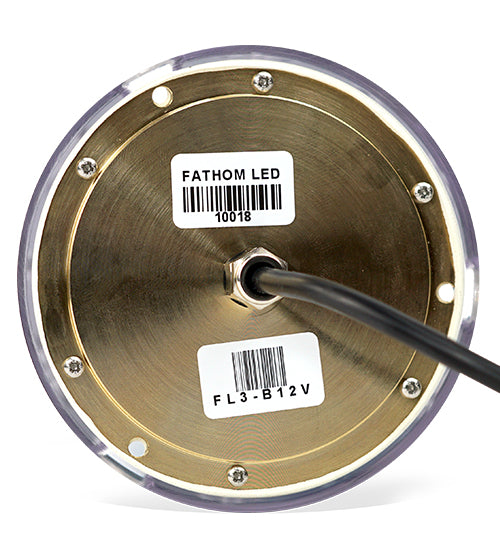

AB2 Bronze Milled Body
4.3″ × 0.7″ Diameter × Profile
12V / 24V 4.6A / 2.35A
50,000+ Hour Life
Overview
Twice the light, same cutout
The FL12 is the high-output member of the Black Oak Marine surface-mount family. Twelve LEDs pushing 8,000 raw lumens at 55 watts, aimed by a 65° main collimator optic with a halo ring around the beam — an optical package designed to keep light in the water and project it farther instead of scattering it at the surface. The housing is the same ultra-compact 4.3-inch bronze body as the FL6, so it drops into the same transom, side, or hull location with one cable hole and three screws. Available in White, Deep Blue, and dual-color Blue/White.
Where the output goes
Lumens are easy. Aiming them isn't.
Raw output alone doesn't put light where fish are. The FL12 pairs a high-density LED array with a collimating optic, then wraps it in a body that can live in seawater indefinitely.
0165° Collimator Optic + Halo
A main collimator optic tightens the 8,000-lumen output into a controlled 65° cone with a halo ring at the edge — the beam stays submerged and reaches farther rather than washing out at the waterline.
02First-Class Components
Twelve LEDs on a thermally-bonded array inside a milled AB2 bronze body — the propeller-and-thru-hull alloy — which pulls 55 watts of heat out into the water instead of holding it against the diodes.
03IP68 / IP69 / IP69K
Three ingress standards, plus reverse polarity protection and active thermal rollback built into the fixture.
Upgrading from an FL6? Identical 4.3″ diameter and 0.7″ profile, identical mounting pattern — the FL12 goes straight into the same hole with roughly double the output. Amp draw rises from 3.5A to 4.6A per light at 12V, so check your circuit before doubling up.
Output
8,000 raw lumens from a 4.3-inch fixture
Twelve LEDs, 55 watts, and a collimated 65° beam with a halo edge. Enough throw to hold bait in deeper water, light a wake for night riding, or turn a transom into a working platform on vessels up to 65 feet.
12 LEDs Per Fixture 55 Watts 4.6A @ 12V · 2.35A @ 24V Up to 65 ft Recommended Vessel
Three color options
Choose your color
Every color is its own dedicated LED array. White renders true color for bait and structure, deep blue is the most popular color, and the dual-color Blue/White fixture carries both arrays behind one lens — switchable from the same on/off switch that powers it.
WhiteTrue color on bait & structure Deep BlueMost popular color Blue / WhiteSwitch between both colorsHow the dual-color works: no controller and no extra wiring. Power it from an ordinary on/off switch — flick the switch off and straight back on and the light steps to the next color. Blue for running and cruising, white when you want true color on bait and structure.

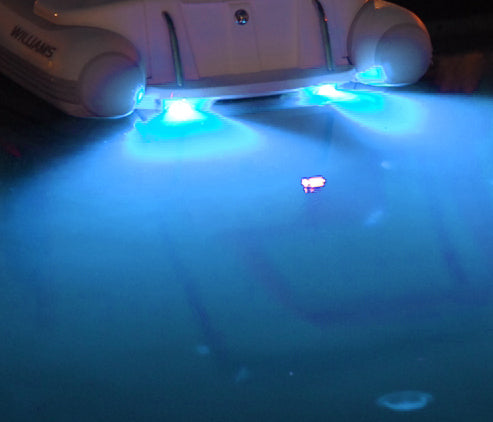

Transom, side, or hull
The low-profile bronze body suits every hull type — mount a pair on the transom, run them down the sides of a larger vessel, or flush-mount above the waterline for accent light. Two lights is the common starting point; three to four is typical on bigger boats and dedicated fishing rigs.
Compact enough to disappear
At 4.3″ across and 0.7″ deep, the FL12 sits nearly flush against the hull — no thru-hull cutout, no fairing block, no drag you'll notice. One cable entry hole, three stainless screws, and the included hardware kit is all the install takes.
Applications
Where the FL12 earns it
Game Fishing Deeper reach on the strike zone Bait Lighting Hold bait in more water column Bow Fishing Read structure and shots Wake Lighting Bright, even transom wash Dock Lighting In or out of the water Accent Lighting Hull glow at anchorSpecifications
Full technical specs
Tap any group to expand.
Power & Output
Total Wattage55W Amp Draw4.6A @ 12V | 2.35A @ 24V Operating Voltage12V / 24V DC Raw Lumens8,000 LED Quantity12 Optic65° main collimator with halo effect Colors AvailableWhite, Deep Blue, Blue/White ControlOn/off switch — quick off/on cycles color on Blue/WhiteHousing & Dimensions
Body MaterialMilled AB2 Bronze Fixture Diameter4.3″ Fixture Profile0.7″ Weight1.1 lb Mount TypeSurface mount — transom, side, or hull Install1 cable entry hole, 3 screwsDurability & Environment
Waterproof RatingIP68 / IP69 / IP69K ProtectionReverse polarity + active thermal rollback UseSuitable in and out of water Life Expectancy50,000+ hours Recommended VesselUp to 65 ftWarranty & Support
Warranty2 Years Guarantee30-Day Money Back SupportUS-basedModel Numbers
WhiteFL12-W12V Deep BlueFL12-DB12V Blue / WhiteFL12-BW12VIn the box
What ships with it
(1) Fathom LED Underwater Light (FL12) Milled AB2 bronze, spliced pigtail lead (1) Stainless Steel Screw Kit Three mounting screwsWiring note: the FL12 ships with a spliced pigtail and needs a harness and switch to operate — neither is included. At 4.6A per light on 12V, size the circuit for every fixture you're running, then add the harness and switch to your order.
FAQ
Questions, answered
FL6 or FL12 — which one do I want?
Same housing, same install, different output. The FL6 puts out 4,100 raw lumens from 6 LEDs at 40 watts; the FL12 puts out 8,000 from 12 LEDs at 55 watts. Choose the FL12 when you're fishing deeper or dirtier water, running fewer fixtures, or simply want the most light per hole. Choose the FL6 when you're running several lights on a tighter electrical budget.
How do I switch colors on the Blue/White version?
With the switch you already have. The light runs off a standard on/off switch — flick it off and immediately back on and it advances to the next color, then cycles back. There's no controller, no second circuit, and no additional wiring to run.
What does the collimator optic actually do?
It collimates — straightens — the light into a controlled 65° cone instead of letting it scatter in every direction, with a halo ring softening the edge. More of the 8,000 lumens stay in the water column and travel outward, which is what gives the FL12 its reach in clear water.
How do I know these lights are high quality?
IP68, IP69, and IP69K are pass/fail test standards, not adjectives — they cover water ingress, temperature, pressure, and brute force. The FL12 carries all three, in a body milled from solid AB2 bronze.
Do the underwater lights come with a harness?
No. Each light has a spliced pigtail and needs wiring and a switch to be operational. Harnesses and switches are available as add-ons.
Does it need a thru-hull cutout?
No. The FL12 is a surface-mount fixture — one cable entry hole and three mounting screws on any flat surface, above or below the waterline, on any hull type.
Can I run it out of the water?
Yes. The FL12 is rated for use in and out of the water, and active thermal rollback protects the array when there's no water to carry heat away.
What does the warranty cover?
If a light fails from workmanship or material defect, send it back and we'll verify it. Once confirmed, Black Oak LED will repair or replace it free of charge. The FL12 carries a 2-year warranty and a 30-day money-back guarantee.
