Standard Wiring Harness
Standard Wiring Harness
Price: $36.00 & Free Shipping
You Save: $9.00
Sale price Price: $45.00 USD & Free Shipping
You Save: $0.00 USD
Couldn't load pickup availability
Standard Wiring Harness
$36.00$45.00

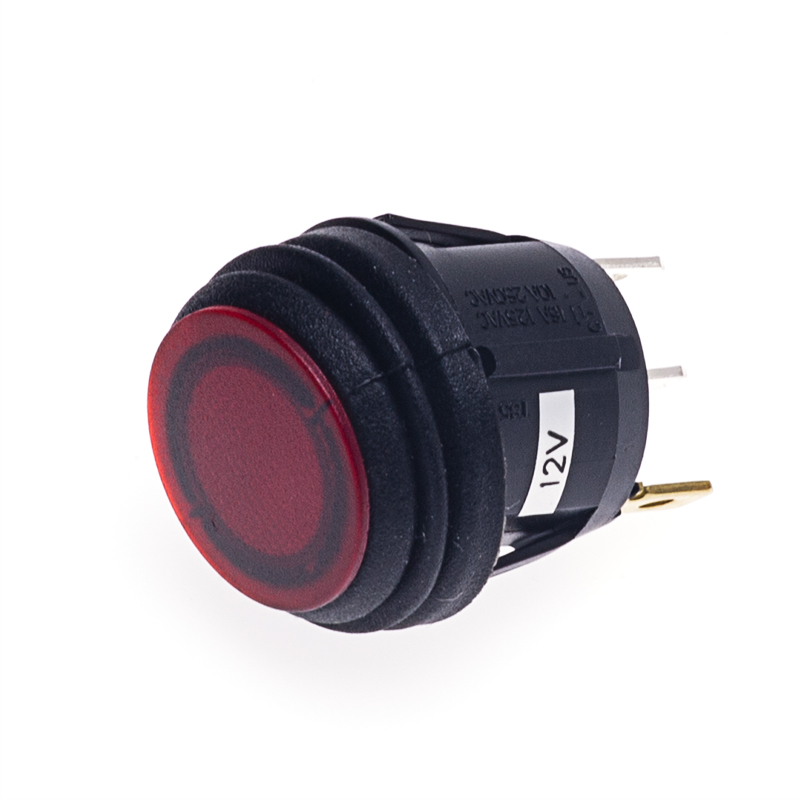

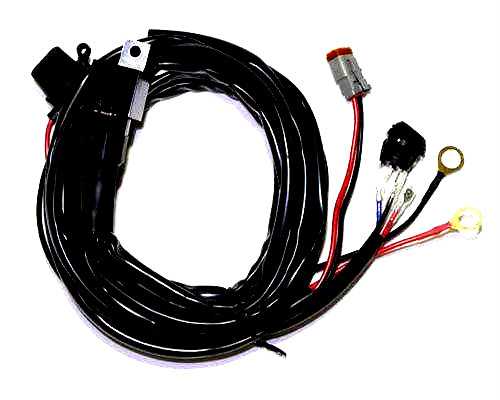

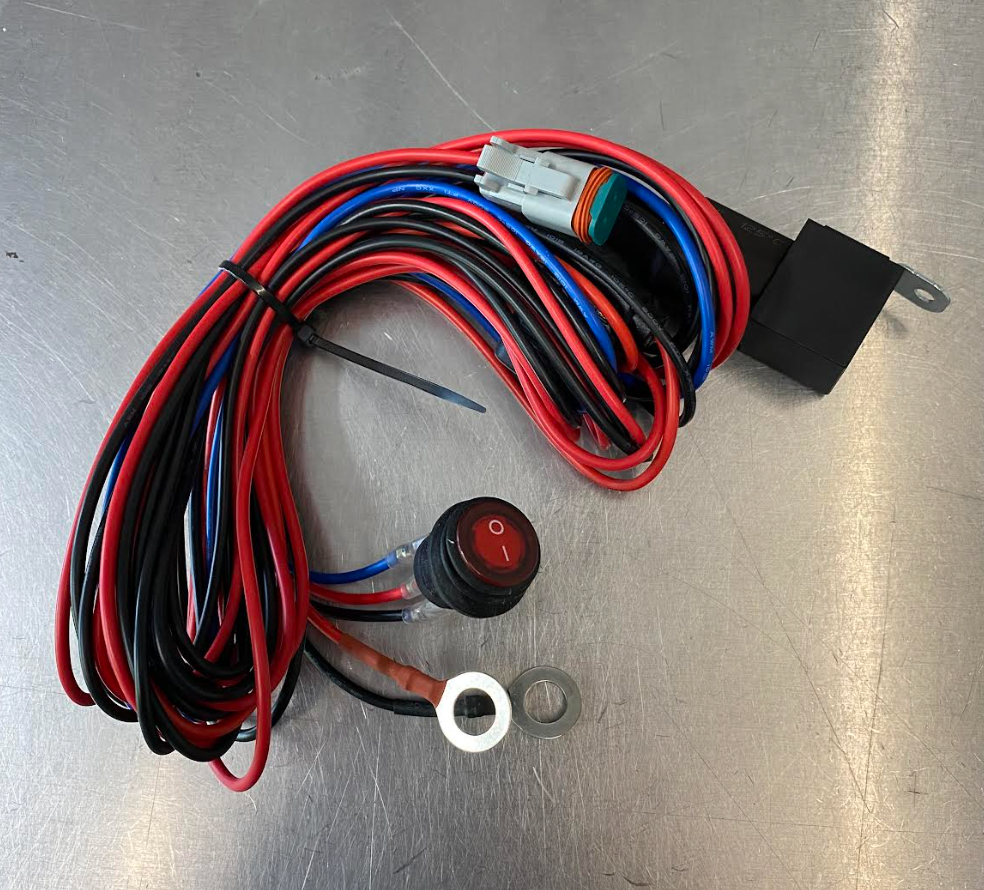

Our Standard Wiring Harness for light bars includes a water-resistant red rocker switch, in-line fuse & relay, positive/negative battery terminal hookups, and waterproof Deutsch connector to make for an easy plug and play install.
The harness extends about 12 ft total. There is a 4 ft extension from the relay to the battery terminal hookups, another 4 ft extension from the relay to the switch, and an 8 ft extension from the relay to the Deutsch connector. Keep in mind each light has some wire length to play with too. Pods-30'' light bars have a 1.5 ft wire to the connector and a smaller Deutsch plug with 14 gauge wire. Our 40'' and 50'' light bars have 4 ft of wire to the connector and use a larger Deutsch plug with 12 gauge wire.
Compatible with:
Pod Series - (not wrapped in thermal sheathing)
Single Row Series
Double Row Series
Marine Series
Customers Also Viewed
2 Inch LED Pod Light | Spot or Flood Optics | Pro Series 3.0 (20W / 40W)
2-Piece Connect Cable
- Reviews
- Questions
United StatesAwesome quality, great shipping and the guy I dealt with was super quick to reply to emails. 100%
Nice Quality Harness
I purchased one of the 12ga harnesses this past winter in order to install a musical air horn in my truck. The horn required 12ga wiring for power, as it drew 20amps, but only came with a relay. Rather then figure out how to wire the relay, connecting the power and switch, and having to buy a switch and fuse holder, I simply purchased this BlackOak harness which was already pre--wired. I simply removed the connection for the light and spliced the positive and negative leads to the compressor of the horn. This harness made the horn installation very simple and appears to be fine quality as well. The BlackOak tech was very helpful in directing me to this purchase. And I couldn't find any other company of the internet which offers a complete wiring harness with 12ga wiring.
